Factors Affecting Spray Drying Quality

Spray drying quality depends on precise control of multiple interconnected factors that determine particle characteristics, shelf life, and product performance. Understanding these variables enables manufacturers to optimize their powder production processes and achieve consistent, high-quality results that meet specific application requirements.

At Advanced Powder Dynamics, we examine the critical factors that affect spray drying outcomes and how advanced processing technologies like Dynamic Atomization address traditional limitations.

Key Factors Affecting the Spray Drying Process

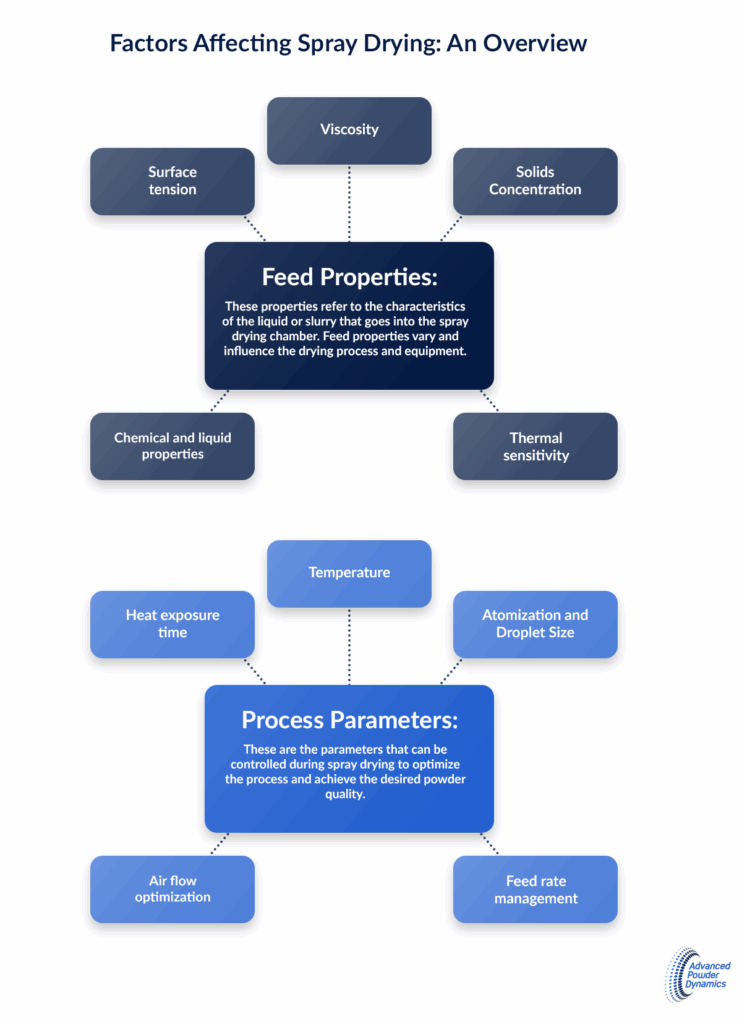

The following table highlights the factors affecting spray drying.

The following section explains how the feed properties and process parameters affect the spray drying process.

• Feed properties

1. Viscosity: Viscosity directly influences pumpability, atomization, and droplet size and shape. The ability to allow for very high or very low viscosities, from a process and configuration perspective, is critical.

2. Feed Solids Concentration: Directly influences particle size, product yield, and powder moisture content.

3. Surface tension: A feed with high surface tension can result in larger droplets during atomization. The high surface tension makes it difficult to break the liquid into smaller droplets and requires higher atomization energy and control.

4. Thermal sensitivity: It is difficult to achieve the desired powder quality with a heat-sensitive feed, as the ingredients may degrade during spray drying. High heat sensitivity may pose challenges to spray drying and can limit the dryer capacity.

5. Chemical and liquid properties: The hygroscopic properties, pH factor, flammability, abrasive properties, and thermoplastic properties of the feed also affect the spray drying equipment and the process.

• Process parameters

1. Temperature: The typical spray drying process involves a high inlet temperature (180°C to 250°C) and a relatively low outlet temperature (80°C to 100°C). Precise inlet/outlet temperature control is critical to optimize drying rate, spray drying efficiency and preserve product integrity and quality.

2. Atomization and droplet size. Atomization energy and time, as well as droplet size, directly influence particle drying time and particle properties. Managing dryer, nozzle, and atomization pressure parameters is paramount.

3. Heat exposure time: An ideal heat exposure time or residence time control during spray drying can help achieve complete drying without over-processing that degrades product quality. The rapid drying in high inlet temperatures is usually very short, ranging between 12-30 seconds.

4. Feed rate management: Feed rate management during spray drying determines droplet size, powder characteristics such as particle size and shape, and overall process efficiency.

5. Air flow optimization: This involves maintaining air velocity and temperature to enhance the efficiency of spray drying and powder quality.

How Advanced Powder Dynamics Addresses the Factors Affecting Spray Drying

Advanced Powder Dynamics utilizes the following technologies to address the typical factors affecting spray drying.

• Dynamic Atomization Technology (DAT): It enables flash drying in half a second, thereby reducing the length of the heat exposure to preserve the integrity of bioactive ingredients. DAT has the following advantages :

1. Zero-pressure controlled feed to eliminate mechanical shear, abrasion, and degradation.
2. Precision control over powder specifications to achieve excellent surface characteristics.
3. Flash drying in half a second to achieve freeze-dry quality powders from a spray dry process.
4. Suited for temperature-sensitive, fragile, or viscous ingredients.

• Cyclodextrin Encapsulation:  DAT supports cyclodextrin inclusion, an encapsulation method to protect temperature-sensitive, bioactive compounds during spray drying. Cyclodextrin encapsulation increases ingredient bioavailability, enables odor and flavor masking, and targeted delivery to accomplish microdosing efficiency.

  Dynamic atomization with cyclodextrin inclusion ensures a three-year shelf life of spray-dried powders without compromising the ingredient efficacy.

• Evaporative cooling: As moisture evaporates from atomized droplets, the cooling effect helps maintain product stability even under high-temperature conditions. This phenomenon enables the processing of highly heat-sensitive materials that would degrade under conventional spray drying conditions.

To sum up, the advantages of APD over factors affecting spray drying are as follows.

Optimizing the Spray Drying Process

Factor	Impact on Quality	Optimization Strategy	APD Advantage
Heat Exposure Time	Shorter exposure preserves heat-sensitive compounds	High heat, minimal exposure duration	Flash drying in half a second
Pressure/Shear Forces	Low shear prevents molecular degradation	Non-pressurized liquid feed systems	Zero-shear processing
Water Activity	Determines shelf life and stability	Evaporative cooling control	3+ years shelf life
Feed Viscosity Handling	Affects droplet size formation quality	Specialized nozzle technology	Processes viscous/dense materials
Temperature Sensitivity	Preserves bioactive compounds	Freeze-dry quality at spray-dry speed	Zero degradation processing

Optimizing spray drying quality requires a comprehensive understanding and control of the factors affecting spray drying. Heat exposure timing, pressure management, atomization technology, moisture control, and advanced encapsulation methods each contribute to final product performance.

Facilities utilizing Dynamic Atomization Technology with cyclodextrin inclusion capabilities deliver superior powder quality through precise factor control and innovative processing approaches. This combination enables the production of consistent, high-quality powders with extended shelf life and enhanced performance characteristics.
